4D/5B

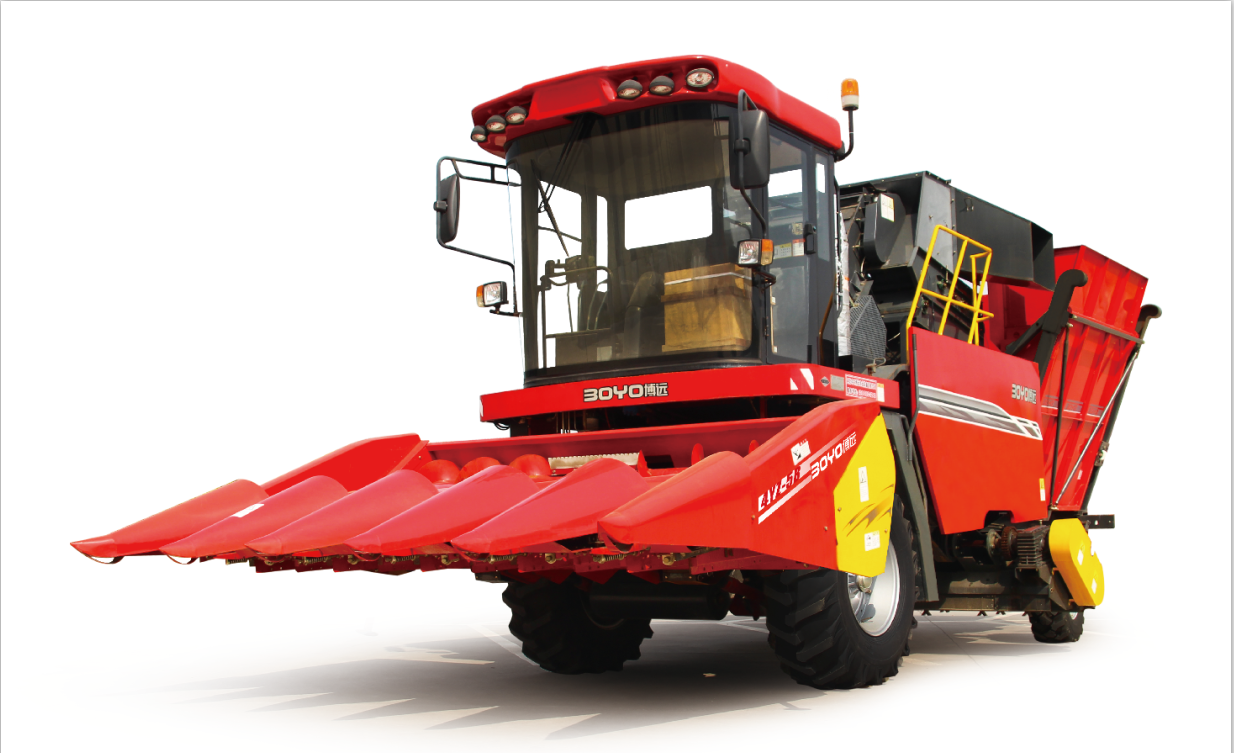

本机在作业时可一次性完成玉米的摘穗、果穗剥皮、果穗升运集箱、果穗侧翻卸粮、秸秆粉碎还田等联合作业。

This machine can complete picker,husking,collecting and unloading of corns,chopping corn stalks and recycling them to the field during one operation.

∆ 割台采用错刀式拉茎辊，拉茎效率高，更适合东北西北地区玉米收割；

The header adopts stalk pulled roller of upper and lower blade type

, with high efficiency, it is more suitable to harvest corns of northeast and northwest area;

∆ 底盘采用成熟的行走系统，闭式边减前桥；

Adopt traveling gear box of special purpose for harvester hydraulic system, and equipped with integrated hub reduction gear;

∆ 六缸大马力发动机，双侧动力输出，动力分配合理，油耗更低；

160hp six-cylinder engine, full and forceful power;

∆ 五组全新剥皮机，采用全新设计的小螺旋缓冲式剥皮辊，剥皮效率高，籽粒损失率低；

New designed peeling roller of buffer and spiral type makes high husking rate and low lose rate;

∆ 剥皮清选系统采用全新设计的电力驱动风机与四杆悬挂式振动筛相结合，使苞叶的排出更加高效顺畅，籽粒中的杂余含量大幅减少；

Clean system：combination of wind and vibrating screen;

∆ 籽粒箱改为“侧挂式”，容积加大，方便卸籽粒，提高作业效率；

Grain tank is changed to "side hanging" type so as that the volume is increased, convenient to unload grain, and increase the working efficiency;

∆ 大容积粮箱，采用分步动作式设计，卸粮高度达2.6米；

Raise first and then side unloading mode, the unloading height reaches 2.6 meter;

∆ 行走电脑，电器元件使工作状态一目了然，同时具备视频监控功能，剥皮机、粮仓工作状态可实时监控；

Video monitor and reversing visual system make working more safe and reliable;

∆可选配6行多通道割台，适收小行距及宽窄行种植模式的玉米；

Equipping with 6 row header is optional, which is suitable for corn field of narrow row spacing or wide-narrow row spacing cropping pattern.

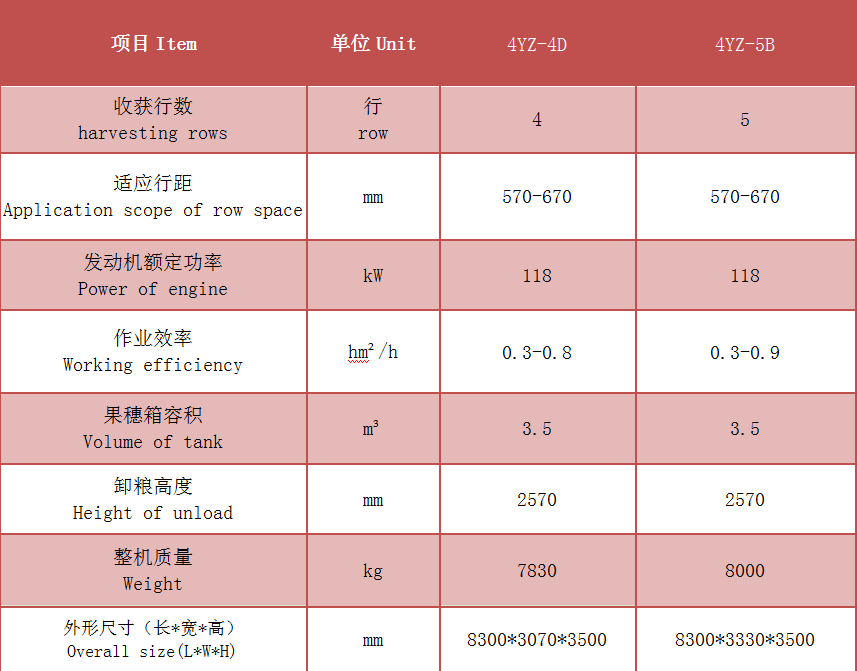

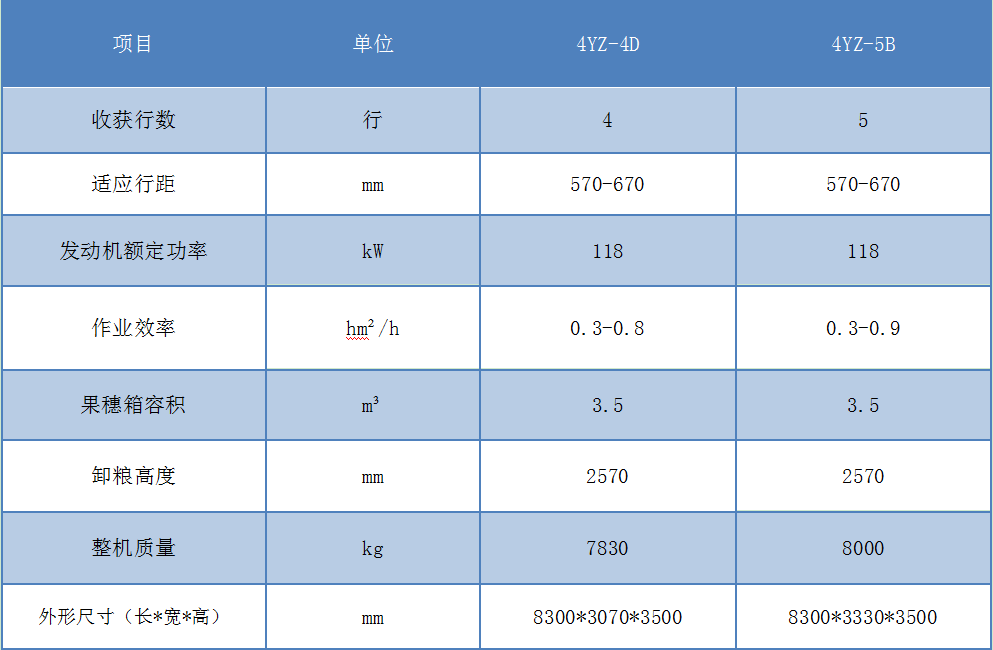

技术参数：
