3CH

创新作业模式  体现个人价值  实现支付梦想

∆ 行走离合器片加大，行走更可靠；

Walking clutch disc is increased, the whole machine’s travelling is more reliable;

∆ 可选配离合液压助力，驾乘更舒适；

Optional clutch hydraulic assistance, the comfort of control is improved;

∆ 整车长度7米左右，转弯半径小，作业掉头更灵活；

7M short machine body, Small turning radius, it's more flexible;

∆ 配置160马力国三发动机，最佳传动比，节省油耗，动力强劲；

Configure 160 horsepower third engine and the best transmission ratio,

 to save fuel consumption and power;

∆一键切换，马力变频：实现转场模式和工作模式一键切换，发动机转速恒定，保证作业效果；

Horsepower is conversed only with a switch to achieve the transition and work mode switching, while the engine speed is constant to ensure work effect;

∆ 作业速度快，正常作业可达7公里，纯作业效率每小时15亩左右；

High working speed, 7km per hour working speed and around 0.8ha/h for working efficiency;

∆ 升级电控系统，具备故障自动报警及远程监控功能，实时查看工况、作业面积、作业轨迹等；

To upgrade the electronic control system, it has the function of automatic alarm and remote monitoring,Check the working condition、operation area and operation track in real time；

∆整车进行了轻量化设计，减少对土壤的压实，降低油耗；

The harvester has been designed of lightweight to reduce the compaction of soil and reduce fuel consumption;

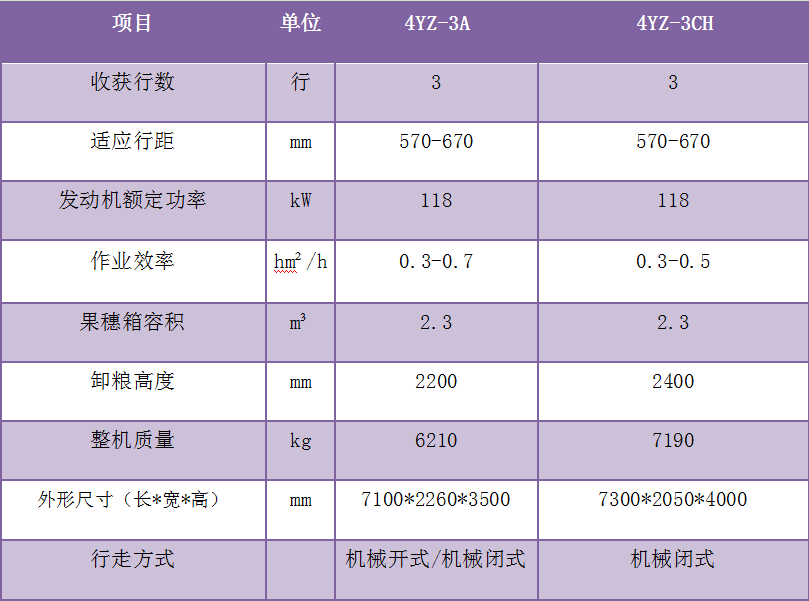

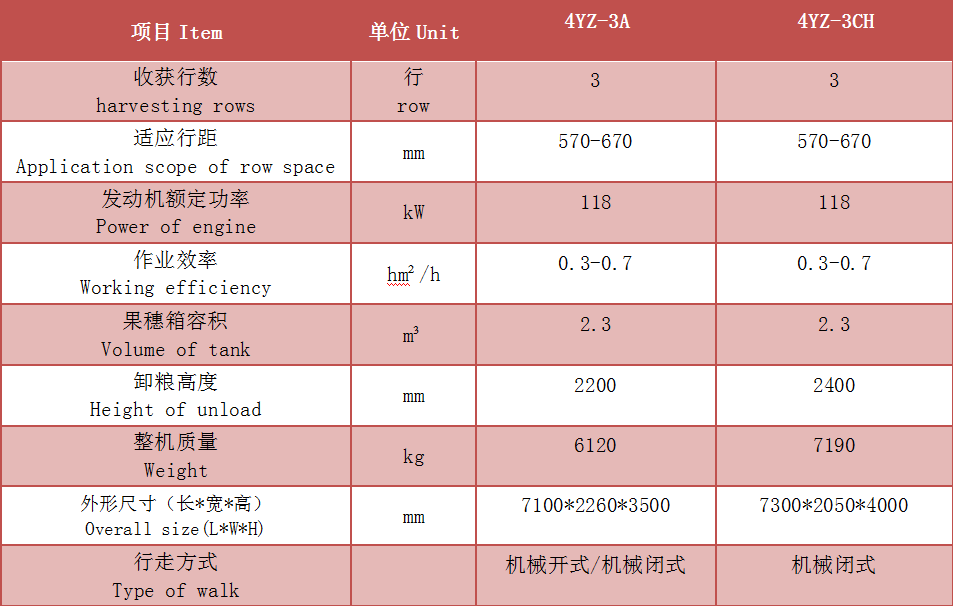

主要技术参数：
